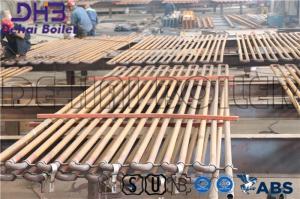

Fabricated Steam Boiler Tubes Reliable Professional Customized Shape Size

Coal Steam Boiler Spare Parts Boiler Super heater High Quality radiant superheater

High Quality radiant superheater Specification

1. In power station boilers above 10 mpa, both screen type and serpentine type superheater are commonly used to increase heat absorption.The wall superheater applied on the inner wall of the furnace is radiant superheater, which is seldom used.The wall-mounted superheater is used in the large capacity power station boiler to form the wall of the furnace top and convection flue.

2. We have fabricated thousands of Superheaters - Radiant, Pendant, Final, Fluidized Bed types, Reheaters for all kinds of Boilers having Complicated very close and Compact Shapes with tube sizes ranging from 32mm OD to 76.2mm OD and thickness from 3mm of 12mm in all types of Boiler Quality Steel Grades ranging from Carbon to Alloys and Stainless Steel for metal temperature ranging up 650 C and for Boilers of 10 to 500 MW Capacity.

Brief Introduction

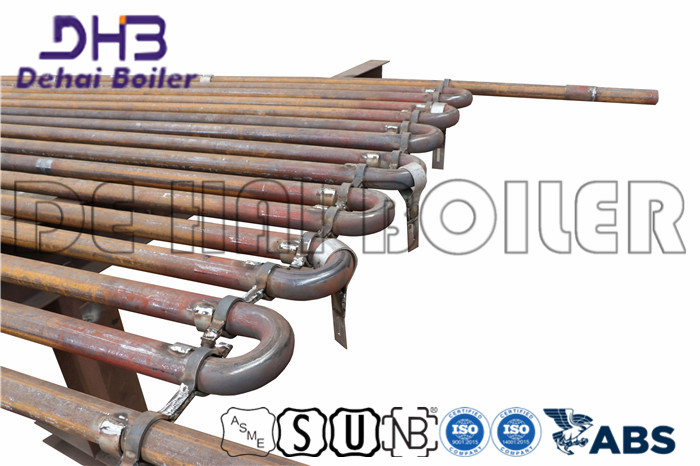

1. Generally 30 ~ 60 mm.The most common type of flow superheater is serpentine tube.It has a more intensive tube group, decorate in 450 ~ 1000 ℃ flue of the flue gas temperature, flue gas of vertical and lateral erosion.The flue gas mainly transfers the heat to the pipe by convection, and some of the heat is absorbed by radiation.

2. The plate-type superheater consists of a plurality of tube screens, arranged in the upper part of the furnace or at the outlet, belonging to the radiation or semi-radiation type superheater.The former absorbs radiant heat from the furnace flame, while the latter also absorbs some convection heat.

Technical Parameter

high temperature heating coil

boiler bank tubes

Fabricated Steam Boiler Tubes Reliable Professional Customized Shape Size Images
