1. The protective effect of membrane water cooling wall on the furnace wall is the most complete, so the furnace wall only needs insulation materials, rather than refractory materials, so that the thickness and weight of the furnace wall are greatly reduced, simplify the structure of the furnace wall, reduce the total weight of the boiler.

2. Membrane water wall also has good air tightness, can adapt to the requirements of positive pressure combustion on the boiler, not easy to slag formation, less air leakage, reduce the heat loss of smoke exhaust, improve the boiler thermal efficiency.

3. It can be welded into components by the manufacturer for quick and convenient installation.

4. The use of membrane wall structure of the boiler, simple maintenance, boiler service life can be greatly improved.

Membrane Water Wall Panel Product

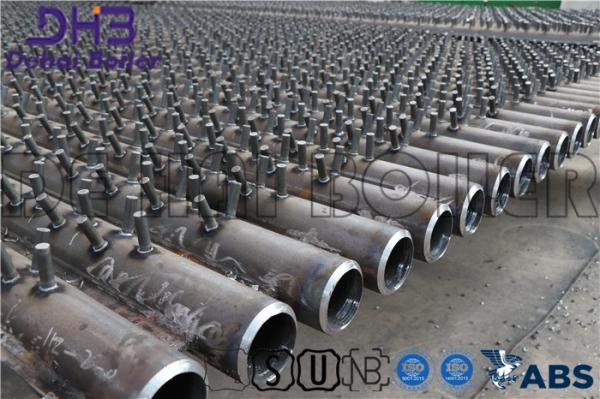

1. Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.

2. It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.

3. Because of both cooling and protection of the furnace wall, so the name.

4. The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.

5. Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.

Fabrication process

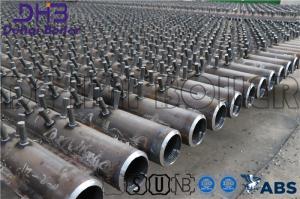

water wall tubes

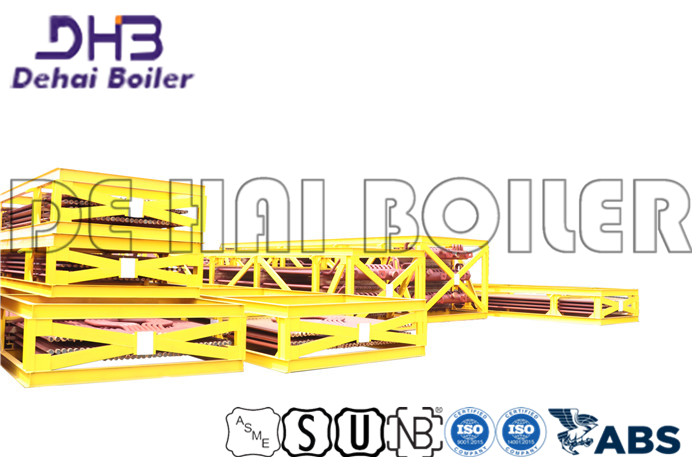

boiler wall unit
